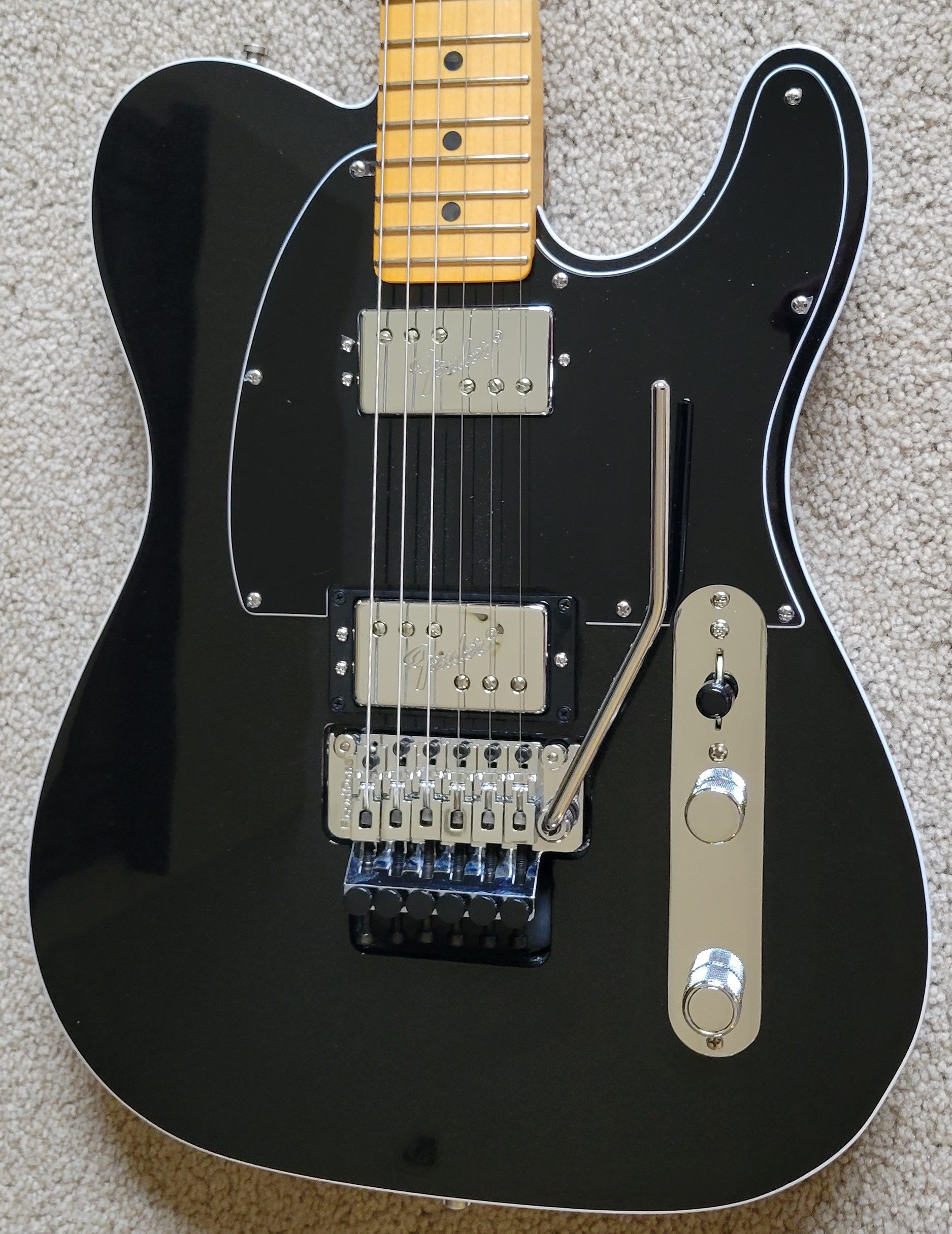

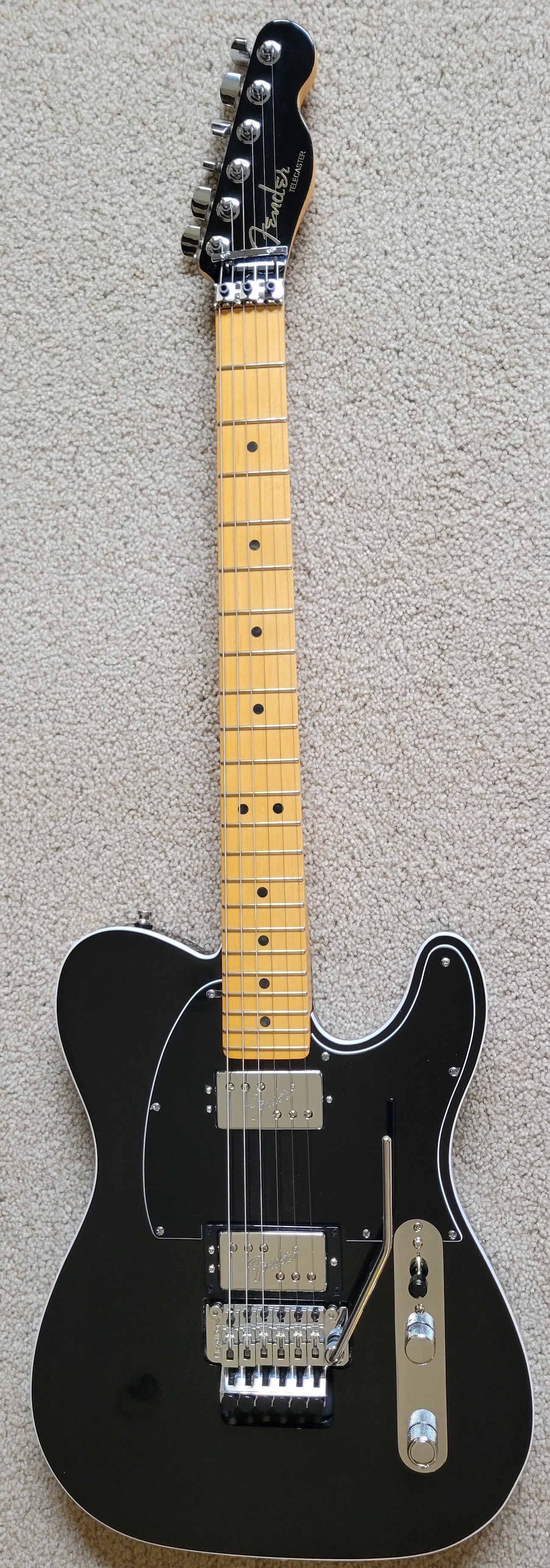

Fender American Ultra Luxe Telecaster Floyd Rose HH Electric Guitar, Deluxe Molded Hard Shell Case

Fender American Ultra Luxe Telecaster Floyd Rose HH Electric Guitar, Deluxe Molded Hard Shell Case

Used - Mint

Regular price $2,175.00 USD
Regular price $2,699.99 USD Sale price $2,175.00 USD
Sale Sold out
Shipping calculated at checkout.
For players who demand the ultimate in performance and tone, American Ultra is our most advanced series of guitars and basses. Featuring an Original Floyd Rose Tremolo system, stainless-steel frets and eye-catching custom colors with matching painted headcaps, the American Ultra Luxe Telecaster Floyd Rose HH is Ultra – elevated.

This model features a unique Augmented “D” neck profile with Ultra rolled fingerboard edges for endless playing comfort, and a tapered neck heel allows easy access to the highest register. A speedy 10”-14” compound-radius fingerboard with 22 stainless steel medium-jumbo frets means effortless and accurate soloing, while the Custom Double Tap humbucking pickups and advanced wiring options provide endless tonal possibilities – without hum. The Original Floyd Rose Tremolo system allows for precision vibrato effects while staying perfectly in tune. The sculpted rear body contours are as beautiful as they are functional. This versatile, state-of-the-art instrument will inspire you to push your playing to new heights.

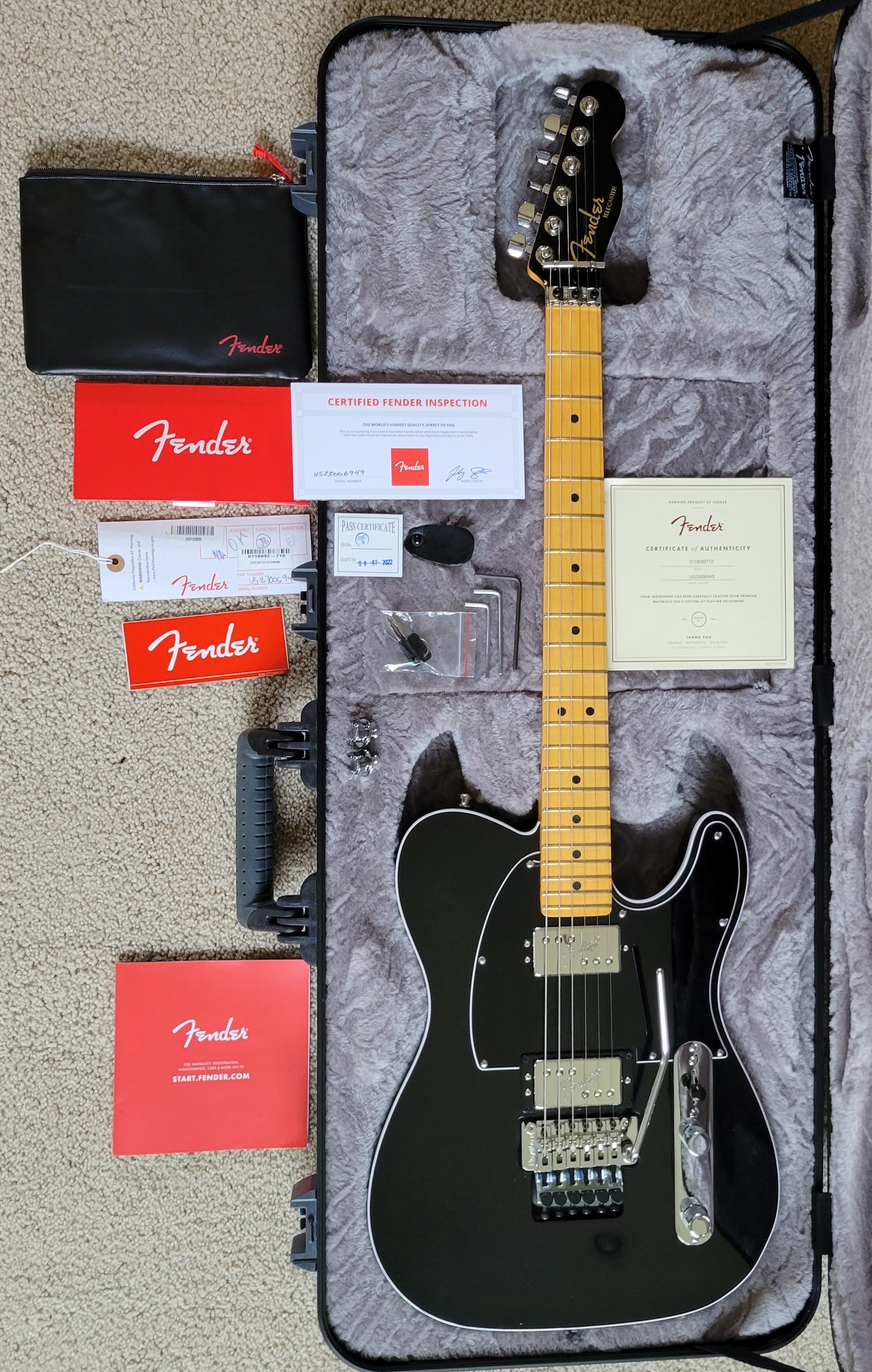

Includes premium molded hardshell case.


- Floyd Rose Locking Tremolo
- 22 Stainless Steel Medium Jumbo Frets
- Ultra Double Tap humbucking pickups
- Augmented “D”-shaped neck with Ultra satin finish
- 10”-14” compound-radius fingerboard

This model features a Floyd Rose double-locking tremolo system which allows a range of vibrato effects – from subtle warble to wild dive bombs – and always stays in tune.

Stainless steel frets are significantly harder and smoother than traditional nickel-silver, giving them extreme durability and a glassy playing feel that makes bending easy.

The Augmented “D” neck profile is a refined hybrid shape with slightly more body than the Modern “D”. The profile becomes subtly fuller towards the twelfth fret, with shoulders that soften in the higher register. Ultra rolled fingerboard

The Ultra Double Tap pickups offer full, rich humbucking tones – and can be split using the S-1 switch to activate the Double Tap technology, providing hot single-coil sounds for dynamic and versatile Fender tone.

Built for speed and easy bending, the 10”-14” compound-radius fingerboard is rounded near the nut for chording, becoming increasingly flat as it nears the upper register for choke-free bending.

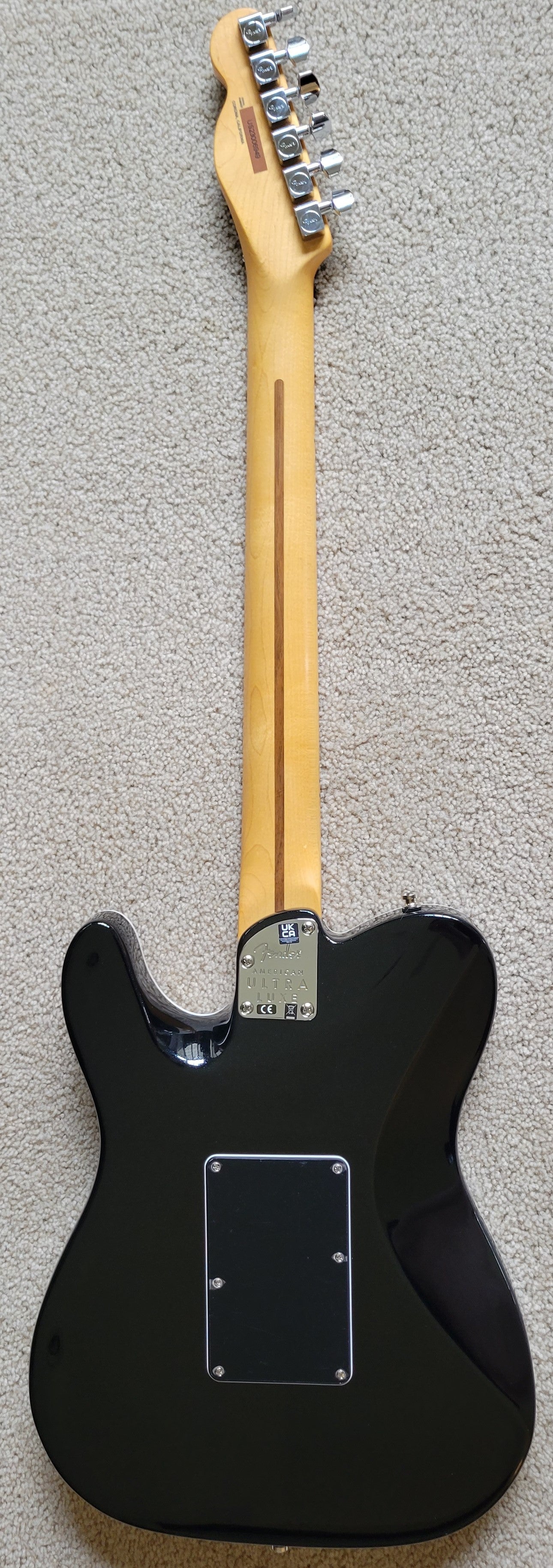

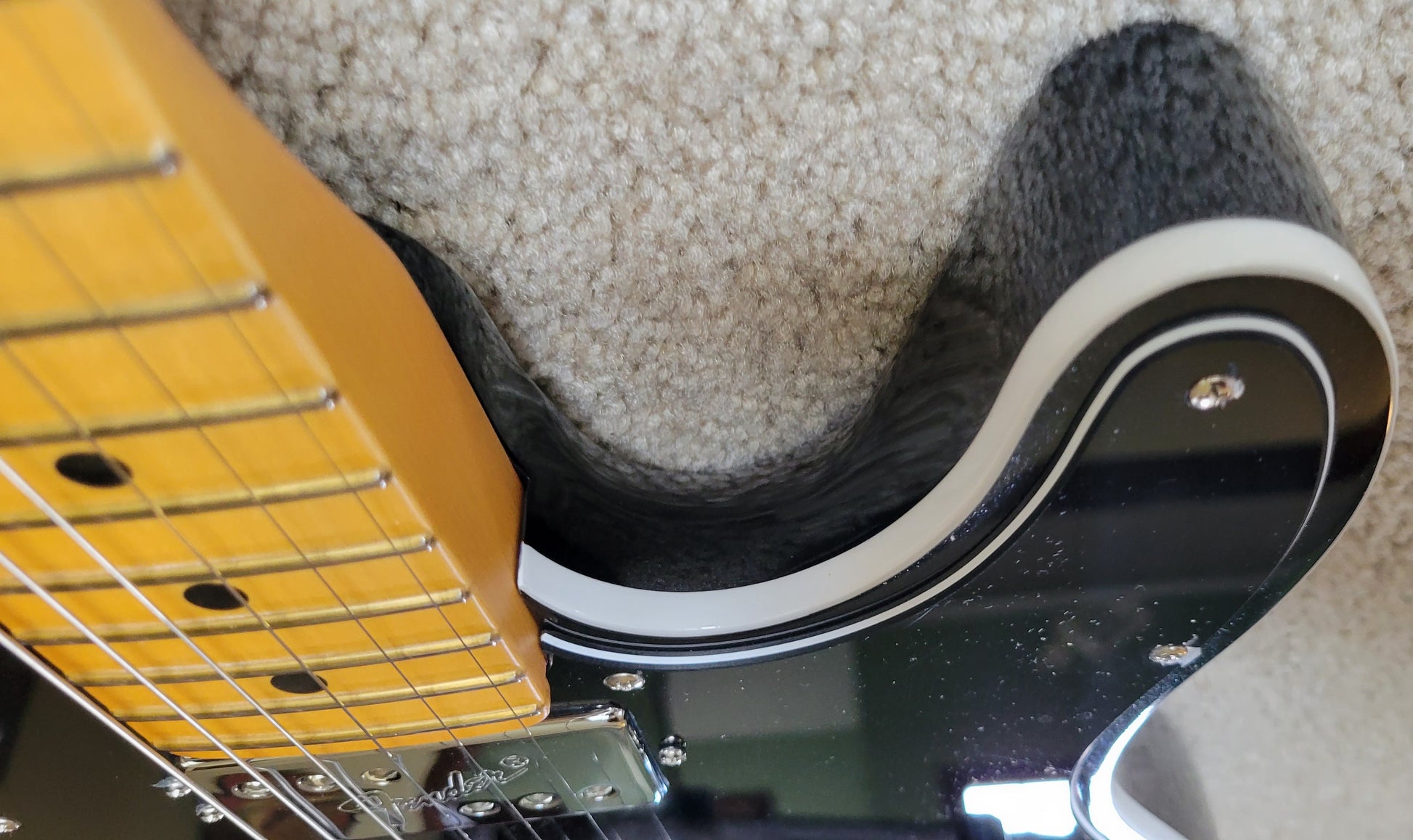

The tapered neck heel allows unparalleled access to the upper registers of the fingerboard, while the sculpted rear body contour is designed for comfort.



Body Material Alder
Body Finish Mystic Black Gloss Urethane
Body Shape Telecaster
Body Binding 1-Ply White


Neck Material Maple
Neck Finish Ultra Satin Urethane with Gloss Headstock Face
Neck Shape Augmented "D"
Scale Length 25.5" (64.77 cm)

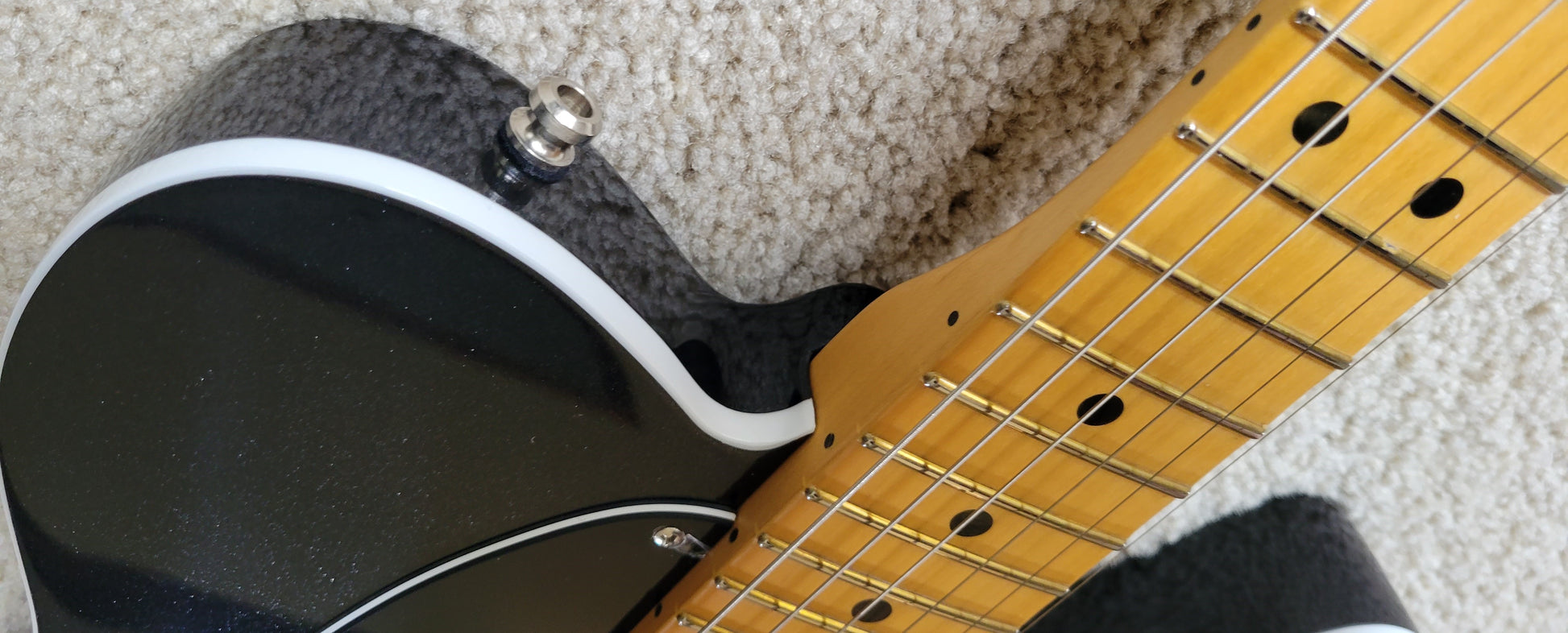

Fingerboard Material Maple
Fingerboard Radius 10" to 14" Compound Radius (254 mm to 355.6 mm)
Number of Frets 22
Fret Size Medium Jumbo Stainless Steel
Nut Width 1.685" (42.8 mm)
Position Inlays Black Pearloid Dots
Side Dots Black


Bridge Pickup Custom Double Tap Humbucking
Neck Pickup Custom Double Tap Humbucking

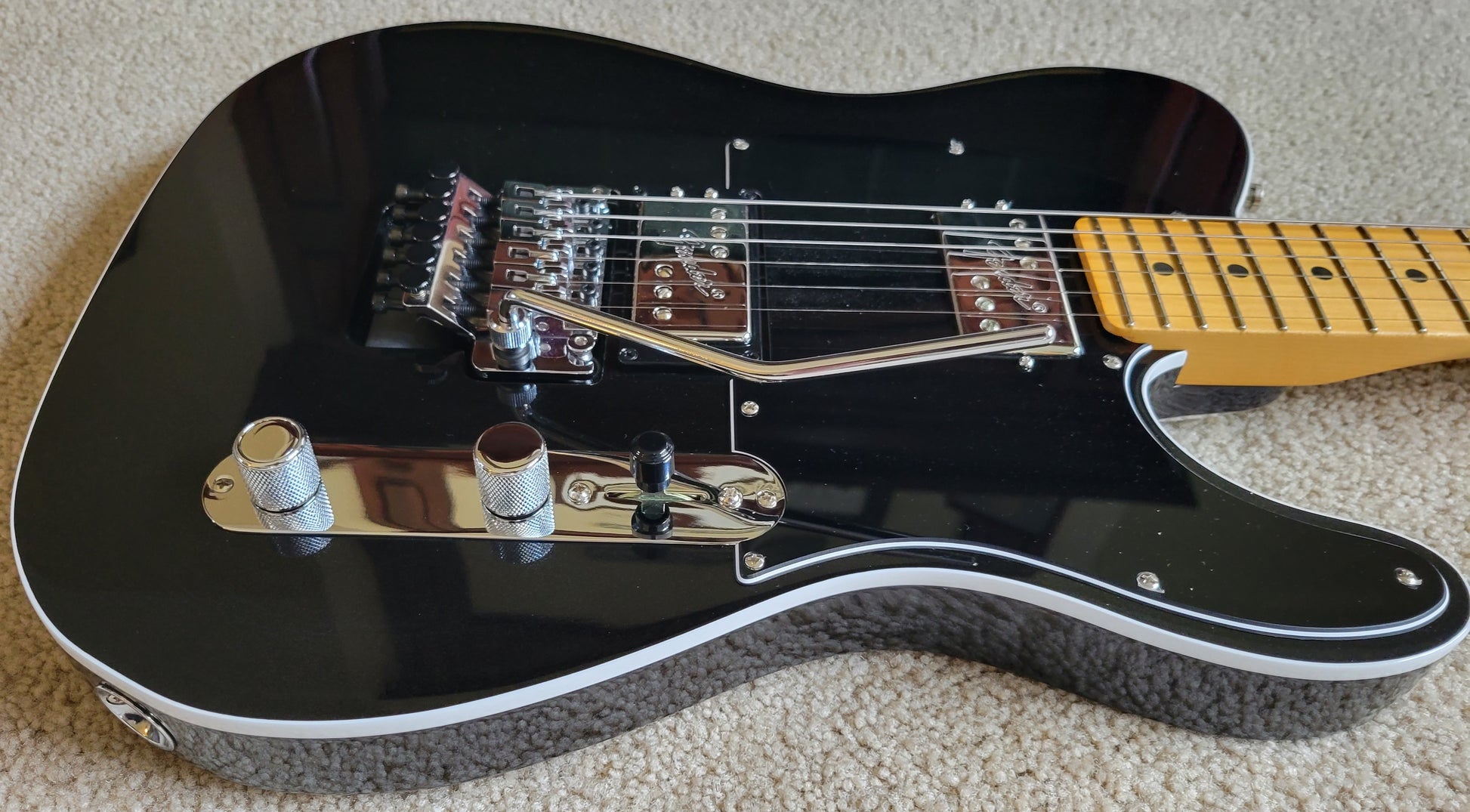

Controls Master Volume, Master Tone (S-1 Switch)
Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Configuration HH
Special Electronics S-1 Switch Activates Custom Double Tap Technology

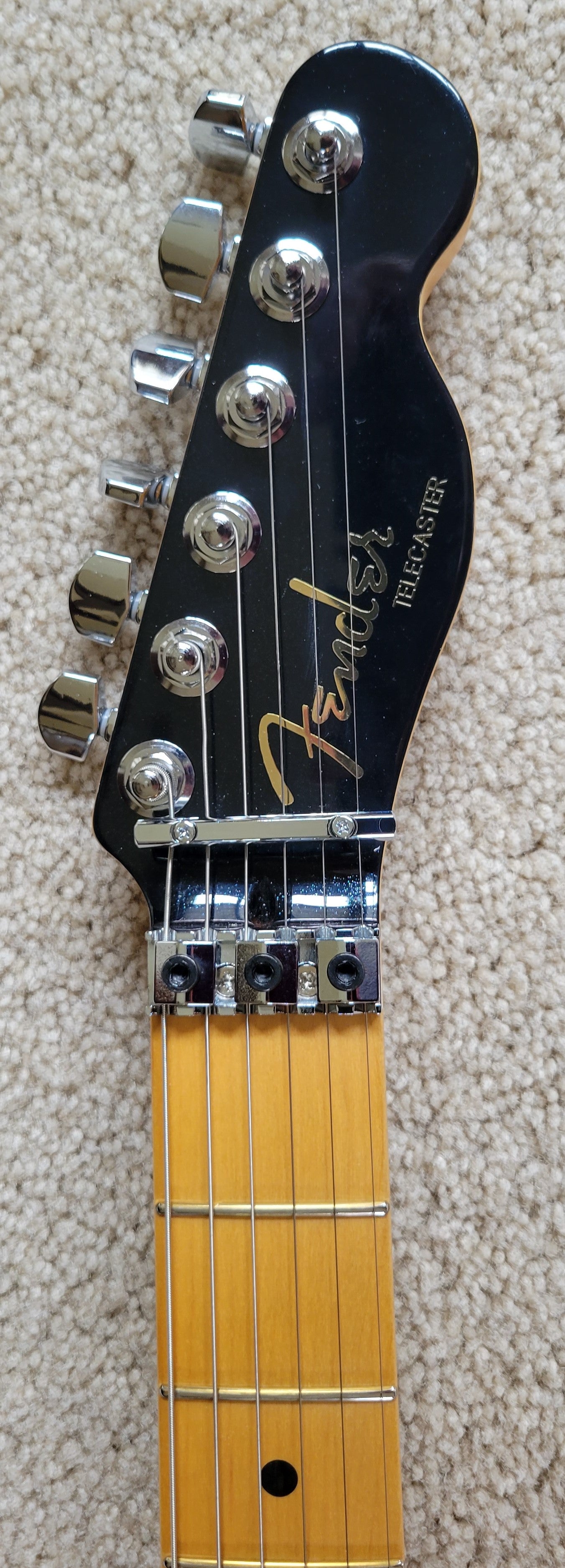

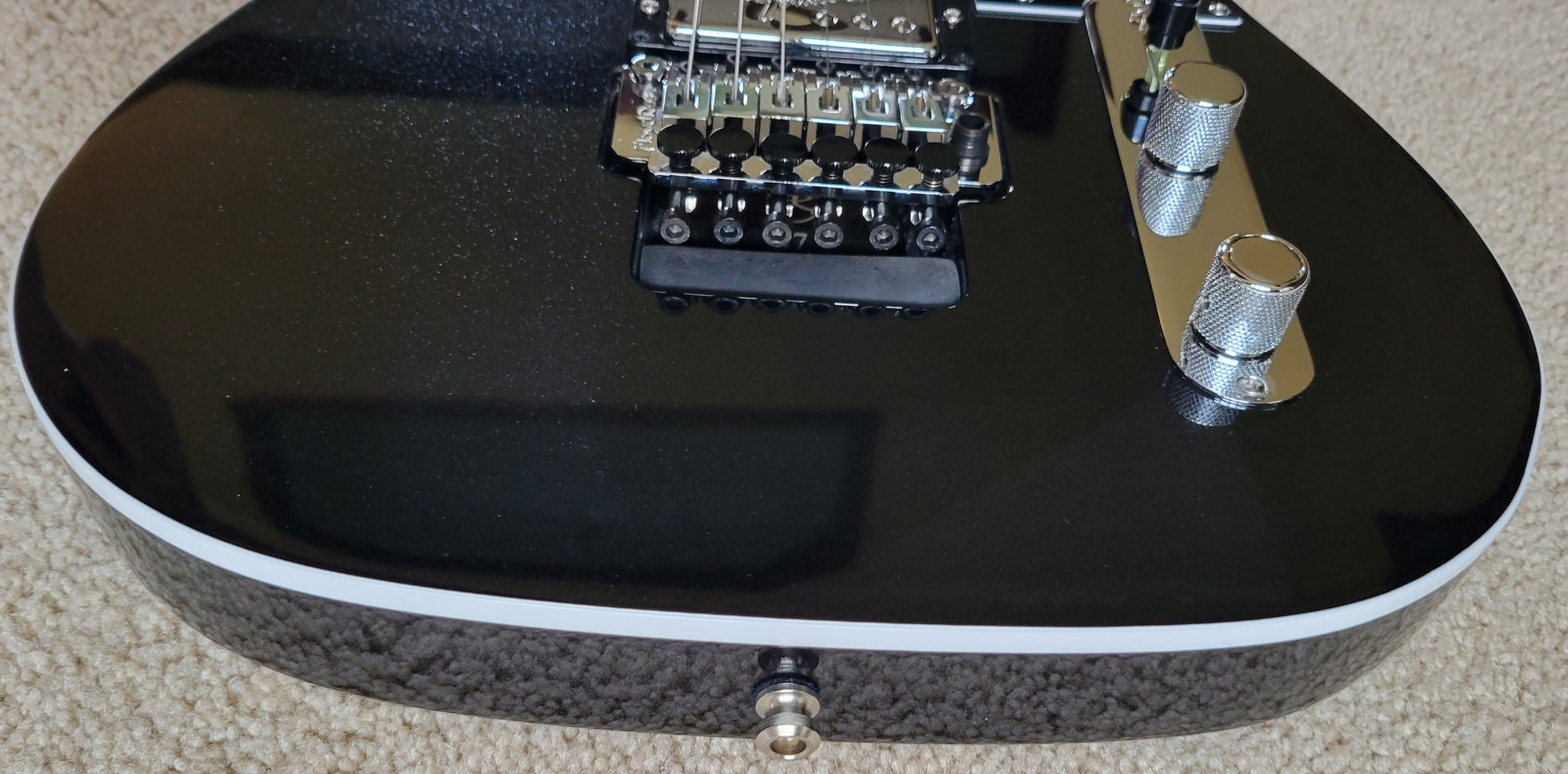

Bridge Floyd Rose Original Double-Locking 2-Point Tremolo
Hardware Finish Nickel/Chrome
Tuning Machines Deluxe Staggered Cast/Sealed
Pickguard 3-Ply Black
Control Knobs Knurled Flat-Top

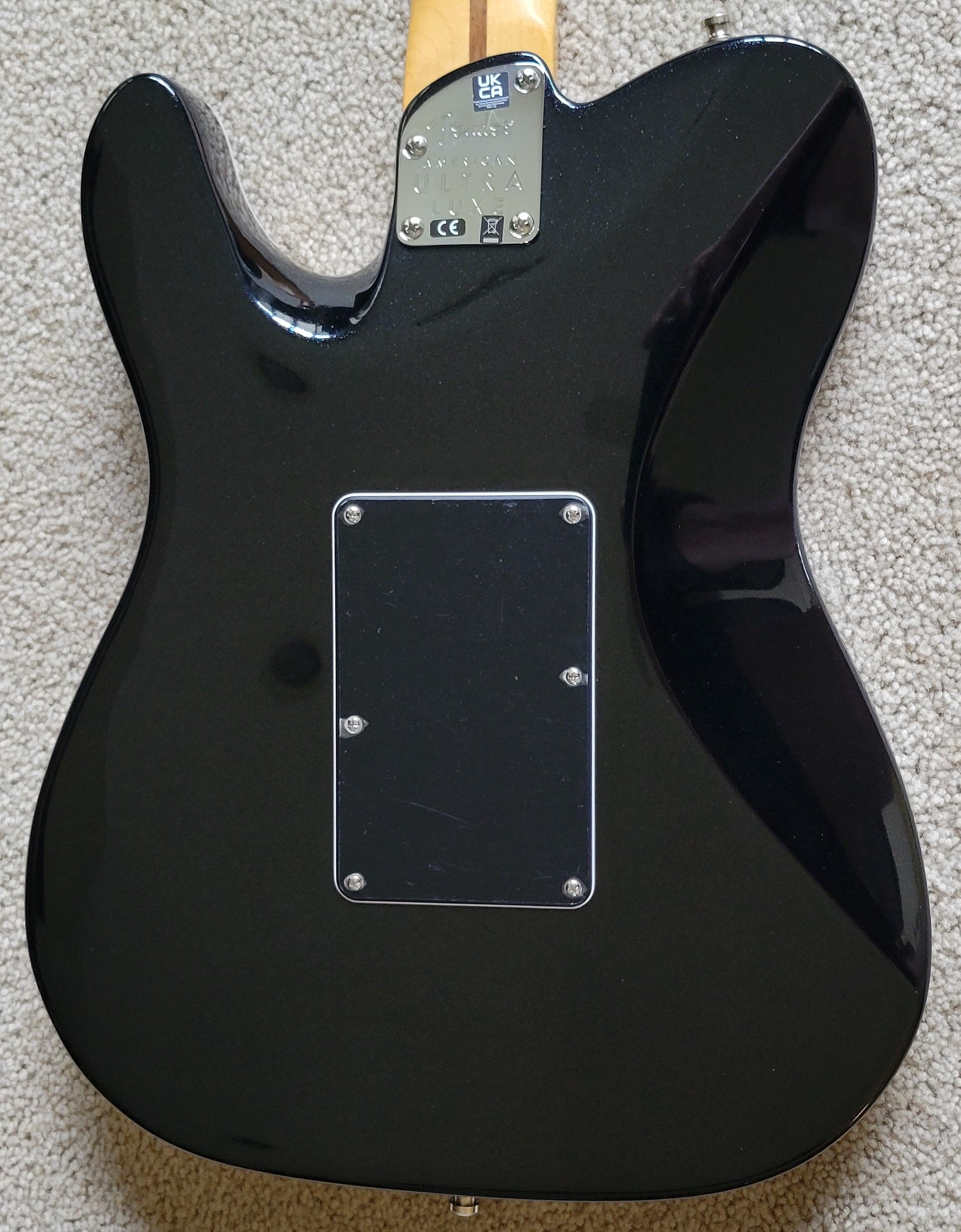

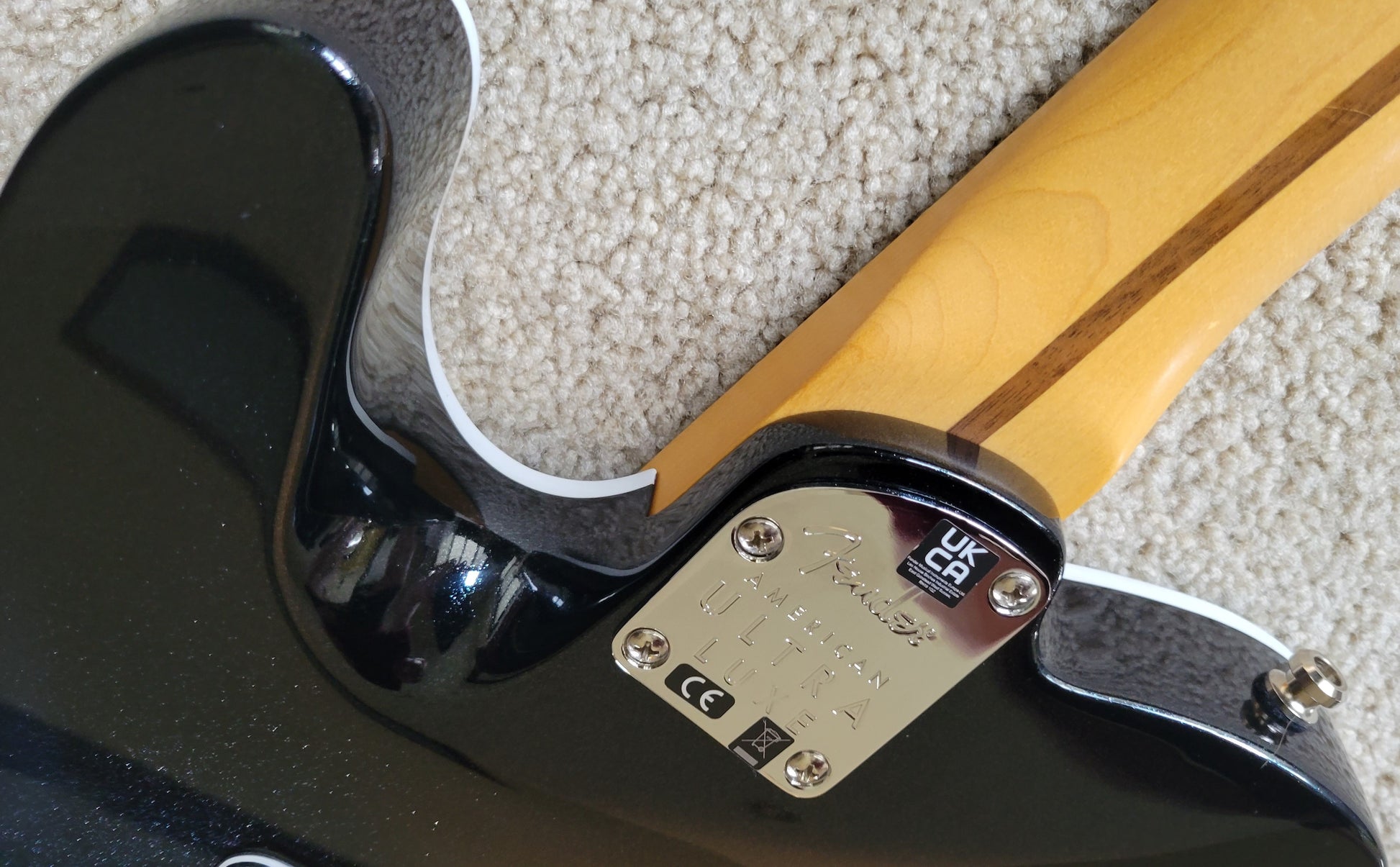

Neck Plate 4-Bolt Asymmetrical


Strings Fender USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
Model # 0118092710

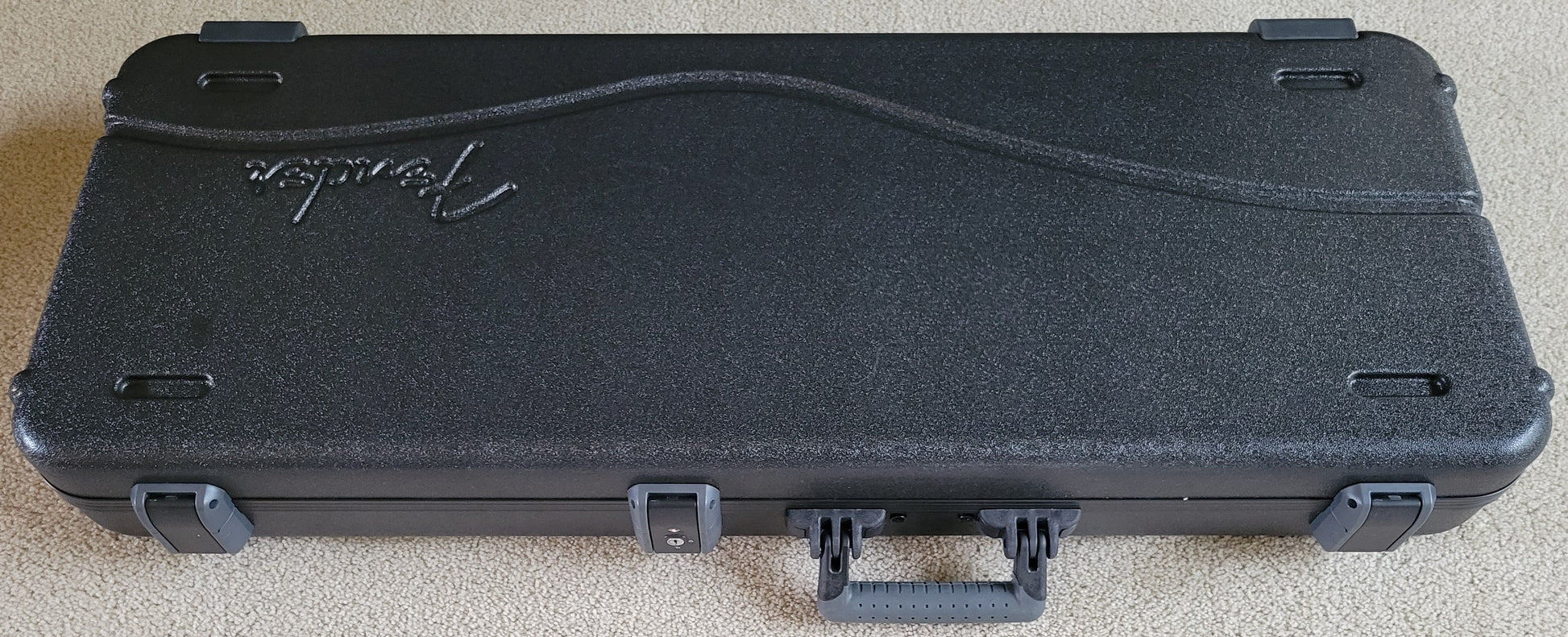

Deluxe Molded Hardshell Case Included

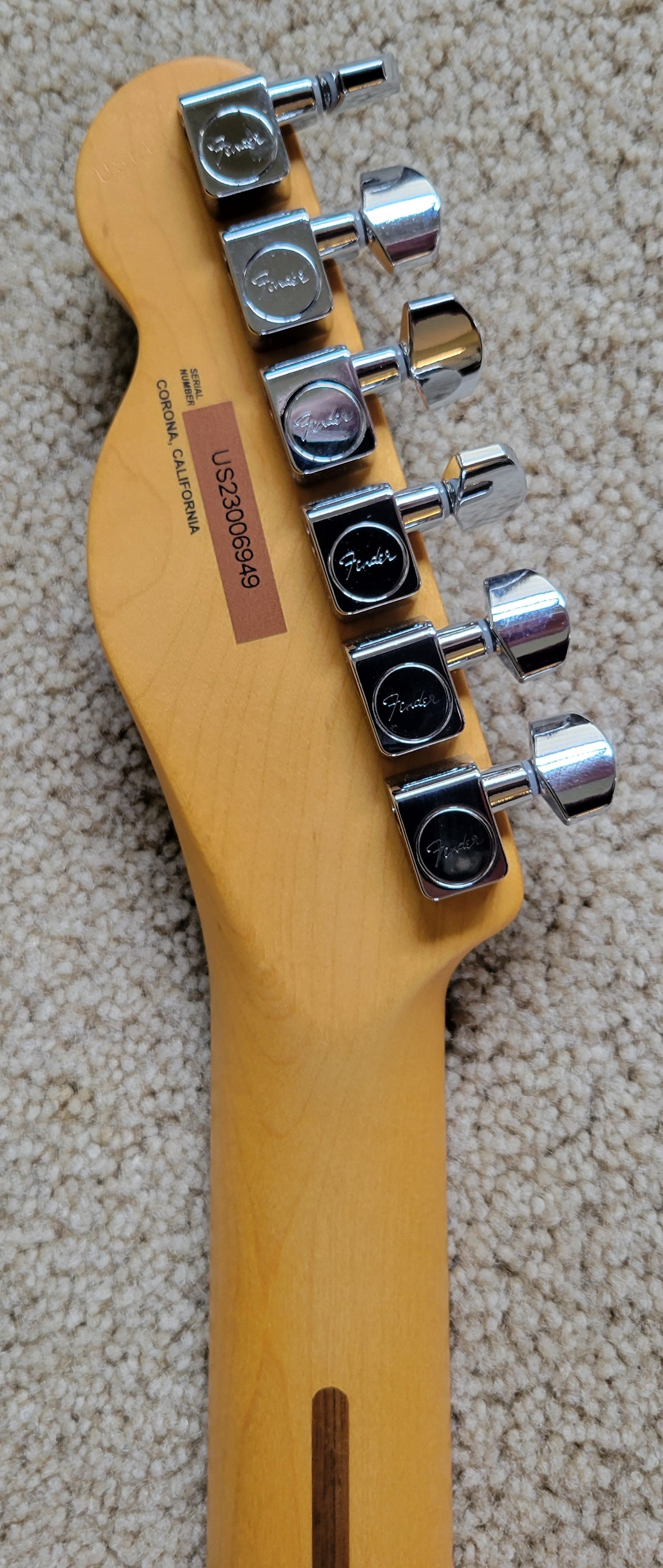

This guitar went from the factory to their authorized refurbisher, where it received a full multi-point inspection and expert setup - it is ready to play! No visible repairs were necessary, and no modifications were made except the back of the headstock was stamped USED and the original serial number was replaced with a new one. I acquired this guitar from the refurbisher, and there has been no other owner. This LIKE NEW guitar has not been played except for setup and testing.

Check-out the videos on YouTube and more information on the company website. This is a Great guitar at a Great Price!
